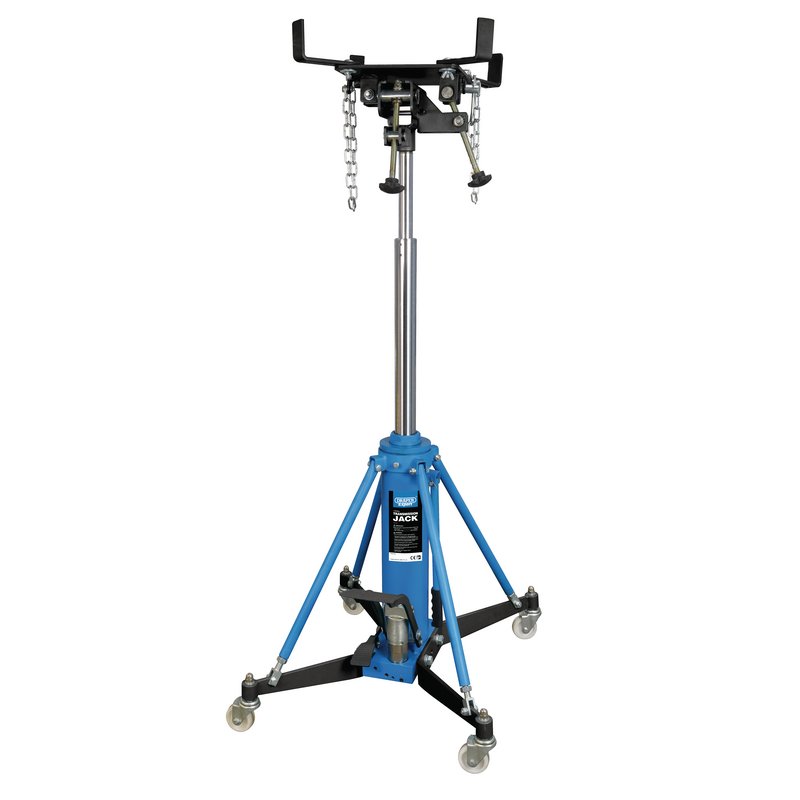

Draper Vertical Transmission Jack, 1000kg

Expert Quality, hydraulic vertical transmission jack with a telescopic twin stage ram. Fitted with a lowering control system (LCS) which safely lowers the load precisely into position and the safety overload valve provides added user protection. Operated via the twin position and ‘Quick Lift’ foot pedal for hands – free operation and attached with chain straps for added support and adjustable supporting struts for increased stability. The nylon wheels provide a quieter and smoother operation whilst preventing damage to workshop floors and the side – mounted handle aids positioning and increases manoeuvrability. The fully adjustable saddle can accept a wide variety of gearboxes/components and the forward, backward and side – to – side tilt features aids the user further

Capacity: 1,000kg
Minimum height: 940mm
Maximum height stage 1: 1,430mm
Maximum height stage 2: 1,940mm
Castor diameter: 75mm
Base size: 740 x 640mm
Saddle type: Adjustable
Chain length: 1,495mm
Weight: 67kg

Manufactured to EN1494 Specification
