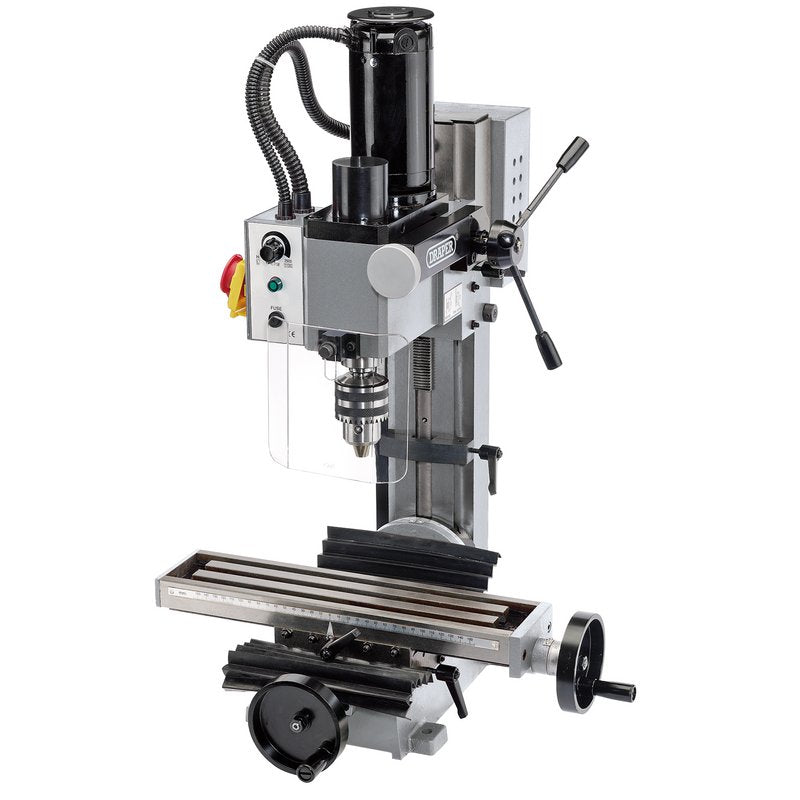

Draper Variable Speed Mini Milling/Drilling Machine, 350W

Bench mounting mini milling/drilling machine which will handle most materials. Incorporates a working table with T slots to enable clamping or workpieces and metric graduated compound scales. Column tilts from 0-45° from vertical. No-volt switch to prevent accidental switch on and approved three pin cable and approved plug. Carton packed.

Drilling capacity   13mm
Face milling capacity   30mm
End milling capacity   16mm
Headstock travel   180mm
Cross axis   100mm
Longitudinal axis   220mm
Spindle tilt axis   ±0-45°
Spindle taper   MT3
Low spindle speed    100-1100r/min
High spindle speed   100-2500r/min
T-slot   12mm
Throat depth   170mm
Table size   390 x 92mm
Weight   60kg
